5dB SC/UPC SC/APC Fiber Optic Attenuator

Name: 5dB SCUPC SCAPC Fiber Optic Attenuator
Brand: DYS/OEM
Price: 1 USD

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : SC/UPC SC/APC

Attenuation value : 1~ 25 dB

Operation wavelength : 1310nm and 1550nm(SM)

Telecordia standard : GR-910-COR

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs in 1 packign or Customized

Delivery Time : 2-5 work days

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Name : Fiber Optic Attenuator

Applications : Fiber optical distributing frame,CATV system

Applications2 : Long distance DWDM system

Features : High return loss,Low wavelength relativity

Attenuation precision : ≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10％

Operation temperature : -40℃~ +75℃

Contact Now

5dB SC/UPC SC/APC Fiber Optic Attenuator

Quick Details:

Brand Name: DYS/OEM

Model Number: SC/UPC SC/APC

Attenuation precision:≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10％

Return loss:PC≥55dB APC≥60dB

Operation wavelength:1310nm and 1550nm(SM)

Temperature(Unencapsulation):95％RH Apply Telecordia standard(GR-910-CORE)

Applications

·Fiber optical distributing frame

·Fiber optical network system

·High speed fiber optical transmission system

·CATV system

·Long distance DWDM system

·Optical add-drop multiplexers(OADM)

Features

·High return loss

·Simple structure

·Max operation power(1W)

·Low wavelength relativity

·Low polarization related loss

Specifications

Attenuation value	1~ 25 dB
Attenuation precision	≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10％
Return loss	PC≥55dB APC≥60dB
Operation wavelength	1310nm and 1550nm(SM)
Polarization loss	≥0.1dB
Operation temperature	-40℃~ +75℃
Storage temperature	-40℃~ +85℃
Temperature(Unencapsulation)	95％RH Apply Telecordia standard(GR-910-CORE)

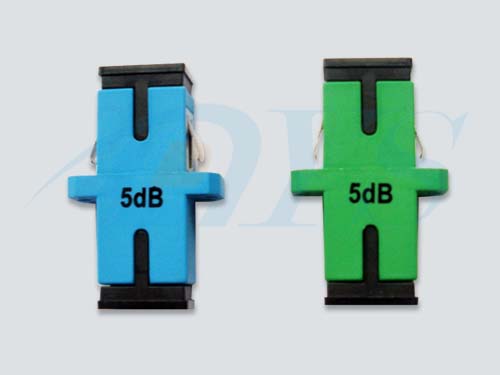

5dB SC/UPC SC/APC Fiber Optic Attenuator

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification
