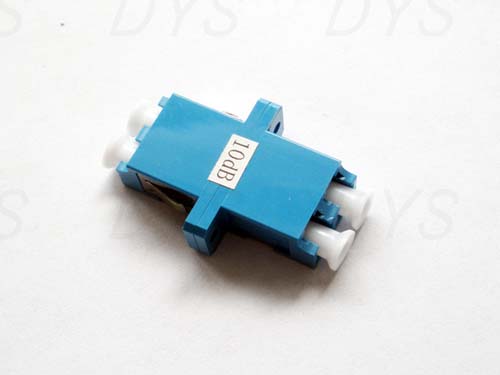

Stable LC Duplex Fiber Optical Attenuator Blue / Green / Metal With 1db - 30db Value
Quick Details:
Model Number: LC
Color: Blue
Color: Blue, green, metal
Model Name: Adapter Type,Plug Type
Attenuation range: 0-30 dB
Mating Durability: >1000 cycle
Connector: FC, SC, ST, LC, MU, etc
Detail:
We offers an extensive line of dual wavelength (1310/1550nm) Singlemode fiber optic attenuators. These versatile in-line attenuators are the perfect solution for attenuating Singlemode fiber connectors for both lab and commercial applications. Constructed of the highest quality materials and factory tested, this series offers the widest array of connector styles and polish types.
Application
1 Fiber optic communication systems.
2 Fiber optic CATV
3 Fiber optic test
Features:
Used to attenuate Single mode fiber connectors/connections
Inline design accommodates fast and easy installation
Ceramic ferrules provide precise alignment
Dual Wavelength (1310/1550nm) support offers multi-application flexibility
Attenuating material-Ion Doped Fiber
Specifications:
| Attenuation Value 1dB ~ 30dB |
| Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm) |
| Premium |
| Return Loss | UPC >55dB |
| APC >65dB |
| Attenuation
Accuracy | 1 ~ 7 dB ±0.5dB |
| 8 ~ 12 dB ±0.7dB |
| 13 ~ 17 dB ±1.0dB |
| 18 ~ 25 dB ±1.3dB |
| Maximum Optical Input Power 1000mW |
| Polarization Dependent Loss ≤0.1dB |
| Operating Temperature Range -40 to 75 |
| Storage Temperature Range -40 to 85 |
| Humidity 95%RH |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
