Splitter optic 1x16 plc, sc/upc input and sc/apc output

Name: Splitter optic 1x16 plc scupc input and scapc output
Brand: DYS/OEM
Price: 1 USD

Splitter optic 1x16 plc, sc/upc input and sc/apc output Manufactures

Place of Origin : Guangdong, China (Mainland)

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : 1x16 PLC

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : IN 3 Days

Payment Terms : T/T or L/C,Western Union or Paypal

Supply Ability : 500000PCS / Month

Fiber type : 9/125 um SMF-28e or customer appoint

Connector : FC, SC, LC, ST

Splitting Ratio : 1*2, 1*8, 1*16, 1*32, 2*16, 2*32, 2*64...

Operating temperature : -40℃ - 85℃

Contact Now

Splitter optic 1x16 plc, sc/upc input and sc/apc output

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Features

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

Splitter optic 1x16 plc, sc/upc input and sc/apc output

Applications

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Types

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Performance

1×N PLC splitter (measured at room temperature and excludes connector loss)
Type		1*2	1*4	1*8	1*16	1*32	1*64
Fiber type		9/125 um SMF-28e or customer appoint
Operating wavelength(nm)		1260~1650
Insertion loss(dB)	Typical	3.6	6.8	10.0	13.0	16.0	19.5
Insertion loss(dB)	(P/S)Max	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.8	20.5/21.0
Loss uniformity(dB)	Max	0.6	0.6	0.8	1.2	1.5	2.0
Polariation dependent loss(dB)	Max	0.15	0.15	0.2	0.2	0.2	0.3
Directivity(dB)	Min	55
Return loss(dB)	Min	UPC:50 APC:60
Operating temperature(℃)		-40~85
Storage temperature(℃)		-40~85

Product Tags:

single mode fiber splitter

fiber optic cable splitter

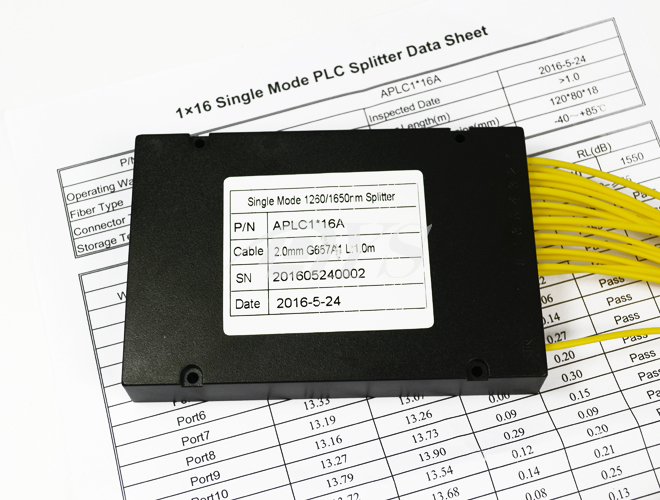

Splitter optic 1x16 plc, sc/upc input and sc/apc output Images
