1x16 Fiber Optical Distribution Box 16 Core FTTH Terminal Box 16f Caixa CTO Box

Product Categories

Optical Fiber Patch Cord [232]
Optical Fiber Splitter [199]
Optical Fiber Connectors [127]
FTTA Patch Cord [97]
MPO [93]
Fiber Optic Attenuator [91]
Fiber Optic Terminal Box [114]
Fiber Optic Adapter [178]
Fiber Optic Splice Sleeves [20]
Optical Fiber Media Converter [29]
Fiber Optic Splice Closure [42]
Optical Fiber Connector Cleaner [47]
Fiber Optic Odf [13]
Fiber Optic Transceiver [9]
Fiber Optic Cable [8]
Wavelength Division Multiplexer [9]
LC Uniboot [9]

SHENZHEN DYS FIBER OPTIC TECHNOLOGY CO.,LTD

Contact Now

1x16 Fiber Optical Distribution Box 16 Core FTTH Terminal Box 16f Caixa CTO Box

Brand Name : DYS

Model Number : CTO Box

Certification : IS09001-2015.ROHS

Place of Origin : shenzhen

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 500000PCS / days

Delivery Time : 3-5 work days

Packaging Details : Individual box or according to customer's request

Type : Fiber Optic Distribution Box

Product name : Caixa CTO

Max capacity : 1pcs of 1x16 plc splitter or 2pcs of 1x8 plc splitter

Use : FTTH

Ports : 16

Material : ABS

Application : Wall mount or pole mount

Waterproof : IP65

Dimension : 270*200*100mm

Color : Black or white

Contact Now

1x16 Fiber Optical Distribution Box 16 Core FTTH Terminal Box 16f Caixa CTO Box

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Dimensions and Capability
dimensions(WHD)	270mm220mm100mm
Adapter Capacity	16xSC;16xLCDX;1x16 PLC Splitter
Number of Cable Entrance/Exit	2/16
Optional Accessories	Adapters, pigtails
Insert Loss	≤0.2dB
UPC Return Loss	≥50dB
APC Return Loss	≥60dB
Weight	1.8KG

Packaging & Delivery

Packaging Details: 10 units per carton for 16 core cto box

Port: Shenzhen

Lead Time:

Quantity(Units)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

1x16 Fiber Optical Distribution Box 16 Core FTTH Terminal Box 16f Caixa CTO Box

Features
1.ABS material used ensures the body strong and light.
2.Water-proof design for outdoor uses.
3.Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5.Ready for splitters: designed space for adding splitters.

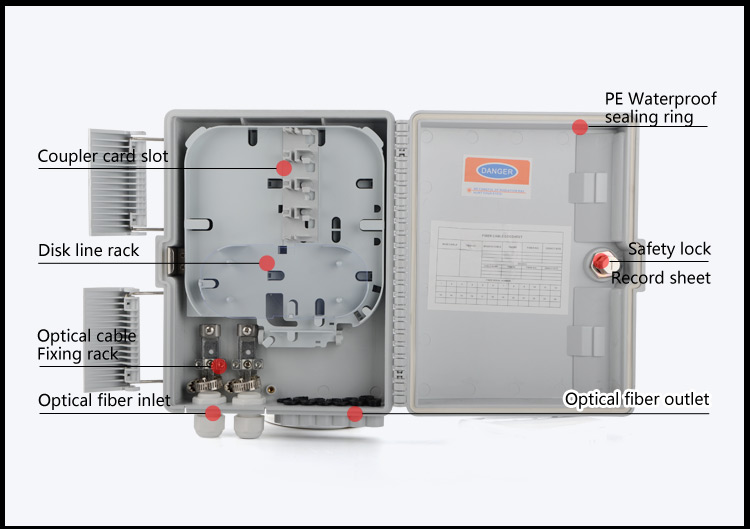

6.Space saving! Double-layer design for easier installation and maintenances:
7.Lower layer for splitters and over length fiber storage.
8.Upper layer for splicing, cross-connecting and fiber distribution.
9.Cable fixing units provided for fixing the outdoor optical cable.
10.Protection Level: IP65.
11.Accommodates both cable glands as well as tie-wraps
12.Lock provided for extra security

1x16 Fiber Optical Distribution Box 16 Core FTTH Terminal Box 16f Caixa CTO Box

Shipping Information

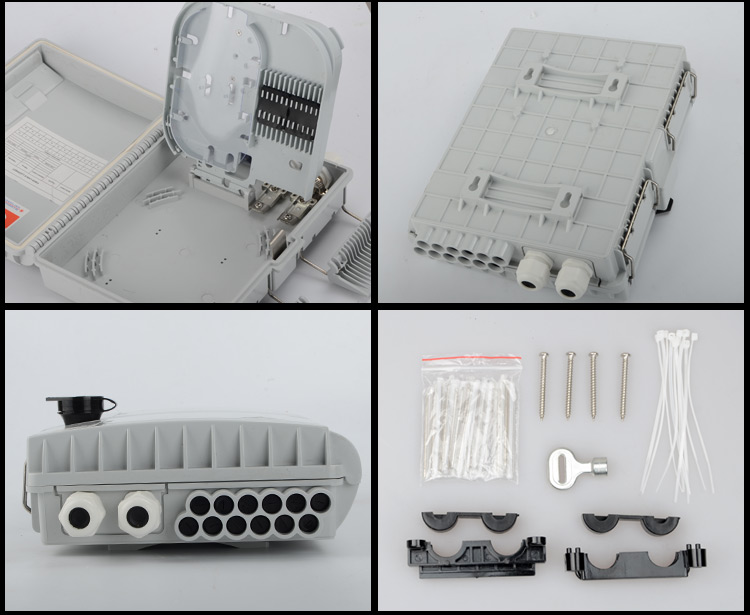

Pakage Contens	Distribution box, 1 unit; Keys for lock, 2keys
Pakage Contens	Wall mount installation accessories,1 set
Package dimensions(WHD)	270mm200mm100mm
Weight	1.8KG
