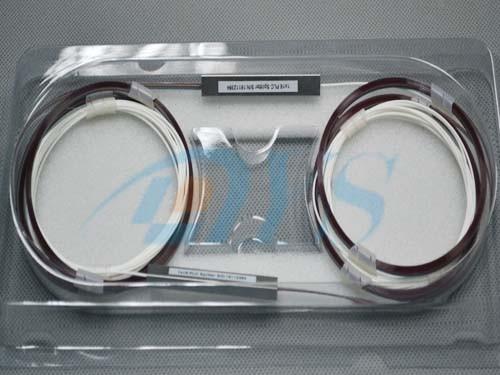

1x16 PLC Singlemode Optical Fiber Splitter With 1280nm - 1650nm Wavelength

Name: 1x16 PLC Singlemode Optical Fiber Splitter With 1280nm 1650nm Wavelength
Brand: DYS/OEM
Price: 1 USD

1x16 PLC Singlemode Optical Fiber Splitter With 1280nm - 1650nm Wavelength Manufactures

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : LC

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Contact Now

1x16 PLC Singlemode Optical Fiber Splitter With 1280nm - 1650nm Wavelength

Quick Details:

Model Number: PLC

Type: 1x16

Mode: Singlemode

Connector type: SC/APC

Cable materal: PVC

Cable OD: 3.0mm

Insertion Loss: ≤17.4dB

Return Loss: ≥50 dB

Optical specifications

Parameters	Specifications	Units	Remark
Channel Number	1×16
Operation Wavelength	1280 ~ 1650	nm
Insertion Loss	≤17.4	dB
Uniformity	≤1.5	dB
Polarization Dependent Loss	0.2	dB
Return Loss	≥50	dB
Directivity	≥55	dB
Fiber Type	G657A
Pigtail	Input: 0.9 /2.0/3.0mm Cable
Pigtail	Output: Fan-out splitter with 0.9 /2.0/3.0mm Cable
Fiber Length	2.05	m	±0.05
Connector	SC,FC,LC,ST,MU……	N/A	<0.3dB

Environmental requirements

Parameters	Specifications	Units	Remark
Operating Temperature	-40 ~ +85	°C
Storage Temperature	-60 ~ +85	°C

Features

Various coupling ratio

Single mode and multi mode available

Low PDL, low excess loss, low insertion loss

Environmental stable

Standard type, compact size

Variety of connectors available

Applications:

Optical communication system

Signal monitoring

CATV Systems & Fiber Sensors

Fiber to the home (FTTH)

Network redundancy

Laser splitting

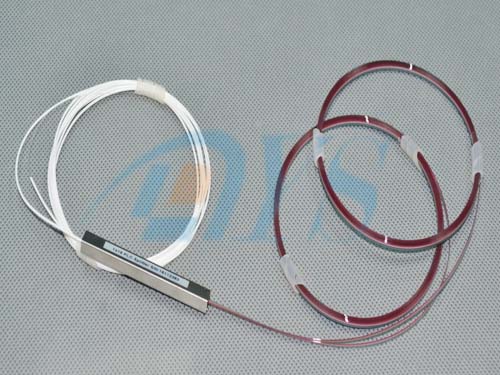

1x16 PLC Singlemode Optical Fiber Splitter With 1280nm - 1650nm Wavelength

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification
